Stäubli MC4-EVO 2 socket, 10 mm², diameter 6.4-8.4 mm
| Tipo di produttore: | PV-KBT4-EVO 2/10II-UR |
|---|---|
| N. articolo del produttore: | 32.0092P0001-UR |
| No. art.: | 6523 |
| Pezzi per unità di imballaggio: |
|
| Tipo di accessorio: | Connettori |
I prezzi saranno visibili ai clienti commerciali solo previa registrazione.
On request
Codice prodotto:
6523
Descrizione
Stäubli Multi Contact MC4-EVO 2 socket for system voltages up to 1,500 V DC and cable with 10 mm².
Stäubli's MC4 and MC4-EVO 2 connectors are a price-efficient and high-quality solution for photovoltaic systems with DC voltages of up to 1,500 V and 100 A. The connectors are available for cable cross-sections of up to 10 mm²/ 8 AWG. The connectors meet the requirements of IEC 61984:2008 (connectors – safety requirements and tests) for general low-voltage DC applications.

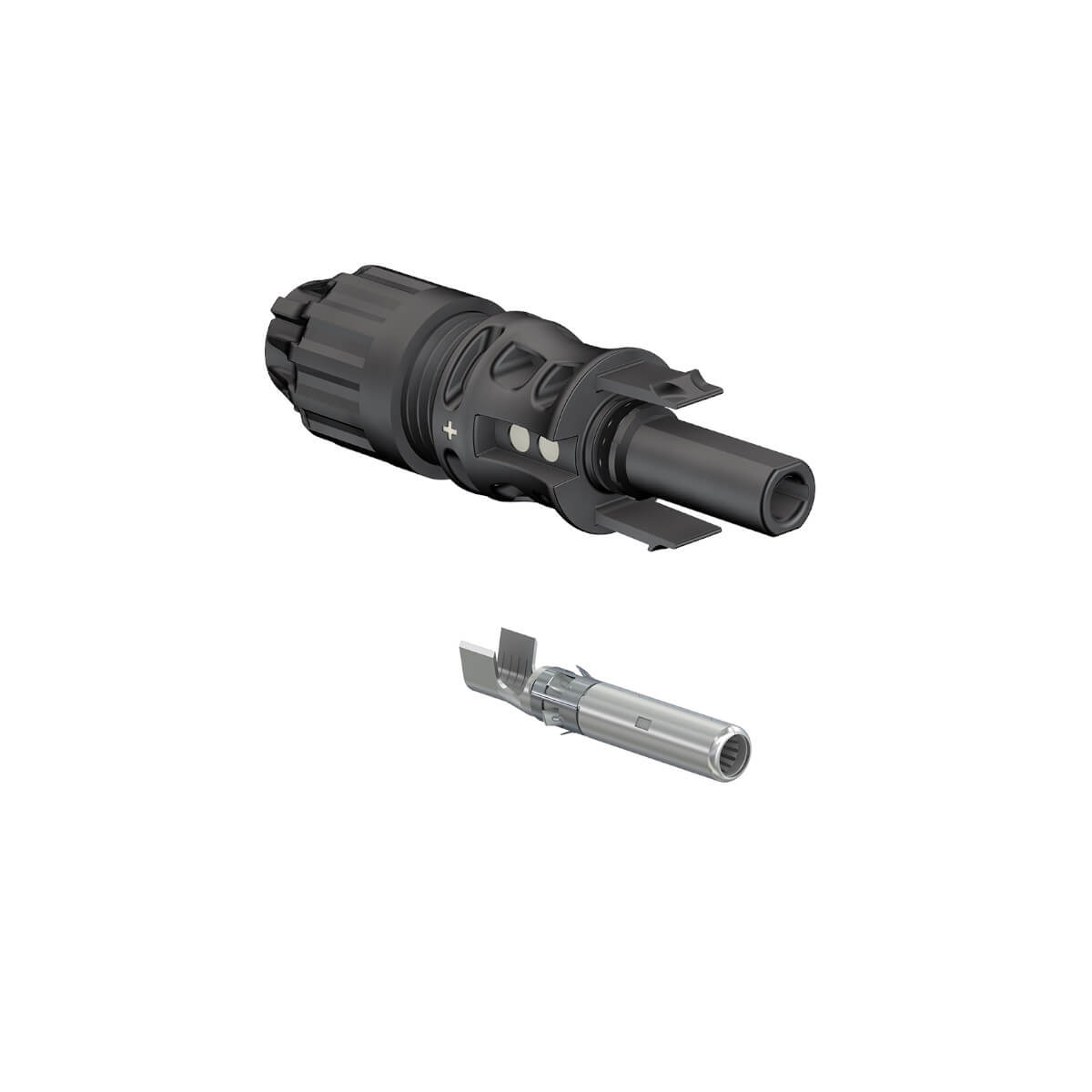

The scope of delivery includes the socket as well as the inner part.
Product advantages
- Meets the requirements of IEC 61984:2008
- TÜV certification in accordance with IEC 62852:2014 in combination with appropriate PV cables
- UL certification according to 6703:2014 in combination with appropriate PV cables
- Can also be used in systems beyond the photovoltaic sector
Product features Stäubli MC4-EVO 2 socket 10,0 mm², diameter 6.4 – 8.4 mm
- Cable cross section (conductor): 10 mm²
- Outer cable diameter: 6.4 – 8.4 mm
- Rated voltage: 1,500 V DC
- Rated current (30°C) at 10 mm² cable cross-section: 104 A
- Ambient temperature: -40 °C to +85 °C
- Protection category: IP 65
